Rockstar 400 Plates

  • Home
  • Rockstar 400 Plates

Abrasion Resistant Plates

Steel Plates Steel Plates

Rockstar 400 Plates

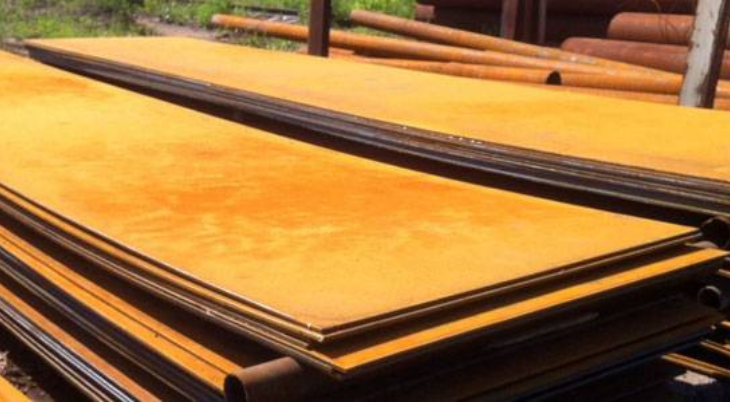

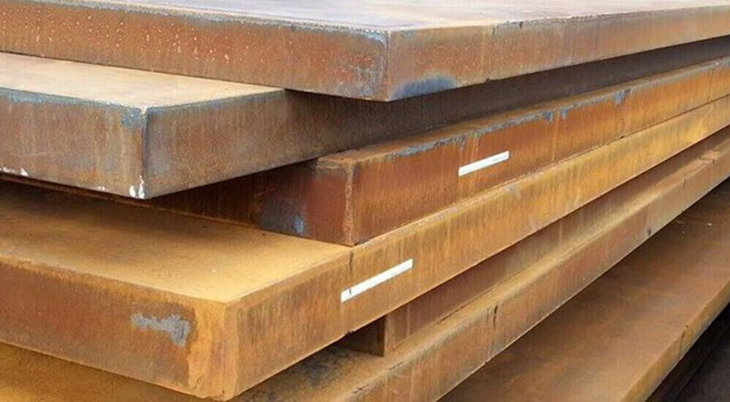

Choudhary Metal now Stock and supply Raex® 400 Plates — the high-strength, wear-resistant steel with good hardness and impact toughness. Raex helps extend the span of machinery, decrease wear in structural components and save costs. It also enables innovative design and lightweight products that improve energy efficiency.

Raex is a high-strength, wear-resistant steel with favorable hardness and impact toughness. It can help extend the lifespan of machinery, decrease wear in structural components and save costs. It also enables innovative design and lightweight products improving energy efficiency.

Applications include buckets and containers, cutting edges for earthmoving machines, wearing parts for mining machines, wearing parts for concrete mixing plants and wood processing machines, platform structures, and feeders and funnels.

Diamension

USED FOR DIMENSIONS STANDARDS
Wear Resistant T: 2 - 80 mm
W: Up to 3200 mm
L: Up to 12000 mm		 EN 10051
EN 10029
EN 10163-2

Mechanical Properties

Product Thickness (mm) Width (mm) Length (mm) Hardness (HBW) Typical yield strength Rp0.2 (MPa) Typical tensile strength Rm (MPa) Typical
elongation A (%)
Sheet 2.00 - 8.00 1000 - 1750 2000 - 12000 360 - 440 1100 1250 10
Plate 6.00 - 40.00 1800 - 3200 2000 - 12000 360 - 440 1100 1300 10
Plate 40.01 - 60.00 2000 - 2500 4000 - 9500 360 - 440 1100 1300 10
Plate 60.01 - 80.00 2000 - 2500 4000 - 6900 360 - 440 1100 1300 10

Chemical Composition (ladle analysis)

Product C (max %) Si (max %) Mn (max %) P (max %) S (max %) Cr (max %) Ni (max %) Mo (max %) B (max %)
Plate 0.23 0.80 1.70 0.025 0.015 1.50 1.00 0.50 0.005
Sheet 0.16 0.50 1.60 0.025 0.010 1.20 1.00 0.25 0.005
