16mo3 Plates Steel is a pressure vessel steel that is used in applications
with elevated temperatures in step with EN 10028–2. It has improved mechanical properties and
better creep resistance allowing it for use as much as 500°c. This makes it best for an
extensive variety of makes use of in which the plates will need to carry out at an excessive
temperature continuously.
16mo3 Steel Applications
Typical applications for 16mo3 include a wide variety of power plant device,
business exhaust, venting and flare structures and waste recycling and incineration flora. It's
also valuable for equipment where components are probably to stay warm for an extended
period.
In energy plant life it's far frequently utilized in boilers, super heater tubes, collector and
hot steam pipes, range tubes and conduits. 16mo3 is also used in diverse sorts of heat exchanger
in both the upstream and downstream oil and gas industry
One example of ways 16mo3 plates is used is in the steel making manner itself. the blast furnace
requires masses of hot air to transform the iron to steel and plenty of the output air is
recovered and used to reheat the enter and reduce expenses. Historically the blast furnaces are
product of general carbon pressure vessel steels; however 16mo3 offers a very good alternative
as it is more immune to the large thermal stresses that it undergoes on an everyday foundation.
The 16mo3 is also extra proof against the corrosion fashioned with the aid of nitrates as
nitrogen oxide is eliminated from the steel mix. And this aggregate of residences can boom the
lifestyles expectancy of essential plant equipment and decrease downtime.
For 16mo3 warmness resistance is supplied through the 0.32% molybdenum alloying detail.
16mo3 Equivalents
It is equal to 15mo3 (DIN 17155 – Germany), 15d3 (NFA 36–205 – France),
bs1501–243b (BS 1501 – UK) and ASTM 204 Gr .B. for customers requiring these grades we can
provide 16mo3 from stock.

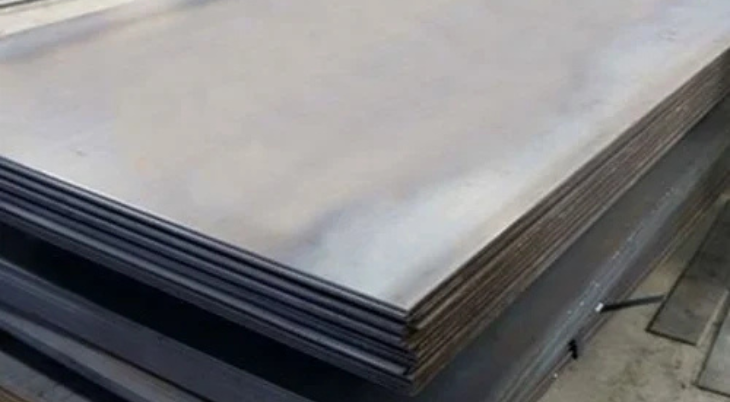

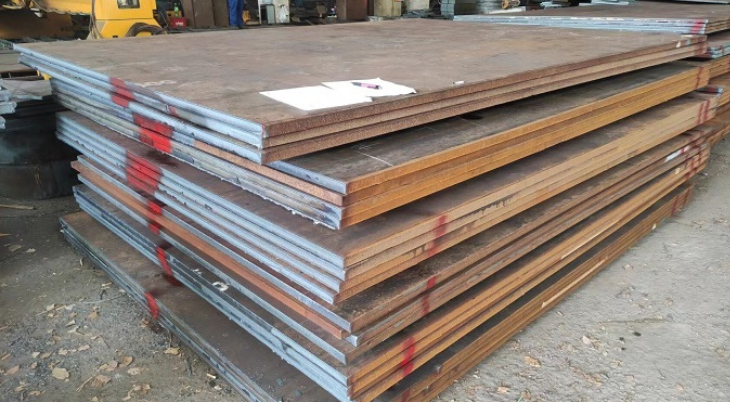

16mo3 Plates to be had Ex-Inventory
We shares 16mo3 metal plates – ASTM 204 b – in lengths of 4000 mm, 6000 mm, 8000 mm and 12000
mm.
Widths are either 2000mm or 3000 mm and thicknesses are from five mm to 250mm.
|
16Mo3 |
| Tensile Strength (MPa) |
440 – 590 |
| Yield Strength (MPa) |
220 – 275 |
| Elongation in 100 – 150mm (%) |
19 |
| Elongation in 16mm (%) |
24 |
| Max Thickness (mm) |
250 |
